Interlocking: Kalamazoo, MI - BO Tower
BO Tower controlled the crossing of the east-west Michigan Central main line and the north-south branch from White Pigeon to Grand Rapids.
The tower was closed on October 24, 2016, after being open 102 years (opened on October 2, 1914). [MRF-11/16]

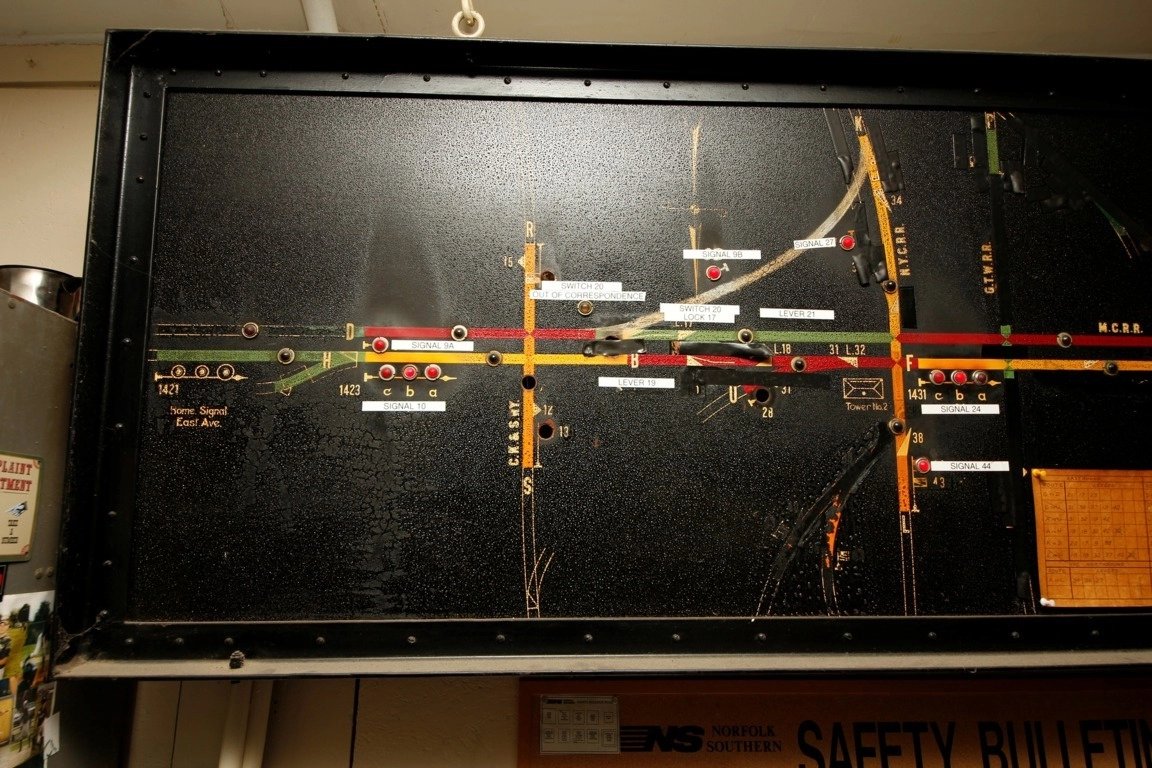

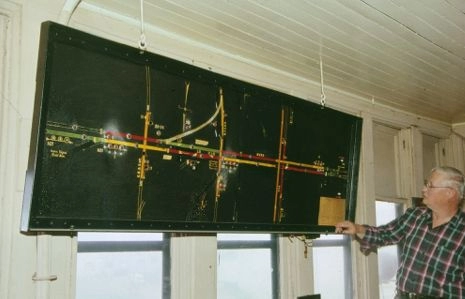

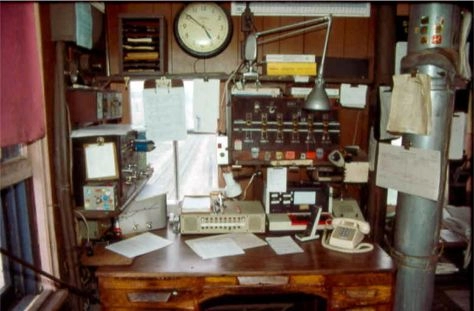

Photo Info/Credit: Top photo, a 2005 view of BO Tower in Kalamazoo. [Nathan Nietering photo]. 2nd photo, a photograph of BO Tower. [Charlie Whipp]. 3rd photo, the interior of BO interlocking, date unknown. 4th photo, a view of the operator's desk in 1990. [Charlie Whipp]. 5th photo, the "model board" at BO Tower in the 1990's. [Charlie Whipp]
About BO Tower:
Note posted by G. M. Meints on 1/17/2005: I spent many hours at Tower 1 as a kid and worked there several times as an adult. I believe it was called "Tower 1" by the Michigan Central because it was the first interlocking tower in Kalamazoo and was built some years before BO tower was built. By the way, BO Tower has never been called "Tower 2". Like "BO" Tower, Tower 1 was owned and maintained by the Michigan Central - 100%. Of course, the PRR had to reimburse a portion of the expense to the MC (later, NYC) but the MC did the work. The tower was manned solely by MC operators on all three shifts, 24 hours a day, seven days a weeks, year around. At Tower 1, if you were answering the PRR telephone line, you called yourself "MC tower". On the MC phone line, you answered "Pennsylvania Tower". But these were vernacular replies, not the formal name of the tower. There were five MC tracks in front (to the south) of Tower 1. From the south, they were: NYC Wye, MC eastbound main, MC westbound main, MC long middle, MC House (which diverged from the Long Middle directly in front of the tower).
BO Tower controlled Signal 1436 located on the eastward main track west of the Kalamazoo station. All eastbound trains were required to stop clear of West Michigan Avenue prior to proceeding. [EYTT-1947]
